Maintenance Parts:

Tools and Tookits

PN Item Diagram
400093050D CTEK US-CD BATTERY CHARGER
Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month
Avail to order
Our Price: $317.22
CTEK US-CD BATTERY CHARGER
Open All

Select Group and TAV

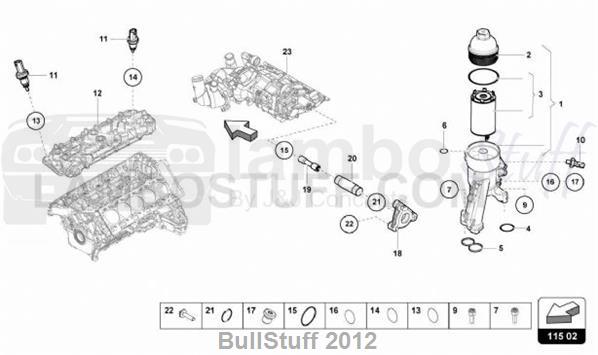

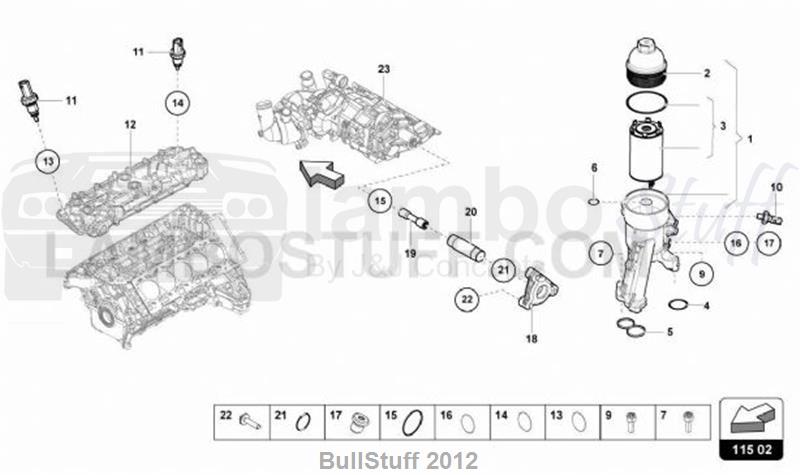

TAV: 115.02.00 - OIL FILTER ELEMENT

2020 Lamborghini HURACAN EVO COUPE 2WD EUROPE OIL FILTER ELEMENT (115.02.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Huracan Parts Manual. Sorry, but there are NO exceptions.

Item # PN Item Qty Req *
1 07L115401F POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT
OIL FILTER BRACKET
1 req *See Description
2 079115433D OIL FILTER COVER
END CAP
1 req Avail to order
Our Price: $102.73
OIL FILTER COVER
3 079198405E Oil Filter Gallardo/Huracan LP Series
FILTER ELEMENT WITH GASKET
1 req Avail to order
Our Price: $89.92
Oil Filter Gallardo/Huracan LP Series
4 N10538201 O-RING
O-RING (19X3,55)
1 req Avail to order
Our Price: $6.19
5 079103121BE GASKET
SEAL
1 req Avail to order
Our Price: $17.87
GASKET
6 N0138063 O-RING
SEAL RING (10X14)
1 req Avail to order
Our Price: $3.35
O-RING
7 N10622101 HEXALOBULAR SOCKET
OVAL HEXAGON SOCKET HEAD BOLT (M6X65)
2 req Avail to order
Our Price: $2.00
8 HYDRAULIC SYSTEM AND FLUID CONTAINER WITH CONNECT. PIECES (SEE ILLUSTRATION : 115.01) 0 req
9 N91124501 12-POINT SOCKET
HEXAGON SOCKET HEAD BOLT (M8X40)
2 req Avail to order
Our Price: $6.48
10 079919081 OIL PRESSURE
OIL PRESSURE SWITCH (1,2-1,6BAR 1 PIN BLACK M10X1)
1 req Avail to order
Our Price: $27.40
11 059919523F TEMPERATURE SENDER
TEMPERATURE SENSOR
2 req Avail to order
Our Price: $62.31
12 REMOVABLE LID (SEE ILLUSTRATION : 100.01) 0 req
13 WHT002287B O-RING
O-RING (FOR WATER TEMPERATURE SENSOR-5,6X2 BLACK)
1 req Avail to order
Our Price: $4.85
14 WHT002287C O-RING
O-RING (FOR OIL TEMPERATURE SENSOR-5,6X2)
1 req Current Stock: 4
Our Price: $5.29
O-RING
15 O-RING (SEE ILLUSTRATION : 121.07-27X3,5) 0 req
16 N0138063 O-RING
SEAL RING (10X14)
1 req Avail to order
Our Price: $3.35
O-RING
17 N91119401 SCREW PLUG
SEALING PLUG (M10X1X10)
2 req Current Stock: 2
Our Price: $4.62
18 07L103707B COVER
COVER
1 req Avail to order
Our Price: $86.21
19 07L115138H CLUTCH PART
COUPLING
1 req Avail to order
Our Price: $191.31
20 07L115467B TUBE
PIPE
1 req Avail to order
Our Price: $27.32
21 WHT008700 O-RING
O-RING (27X2,5)
1 req Avail to order
Our Price: $3.13
22 N10704501 HEXALOBULAR SOCKET
OVAL HEXAGON SOCKET HEAD BOLT (M6X35)
1 req Current Stock: 14
Our Price: $2.00
HEXALOBULAR SOCKET
23 OIL PUMP (SEE ILLUSTRATION : 121.07) 0 req

* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
