1974 - 1978 Countach LP400 - USA

Group :

Tav :

Maintenance Parts:

Belts

PN	Item	Diagram
004504532	BELT BELT FOR AIR CONDITIONER		Current Stock: 1 Our Price: $50.20

Common repairs and upgrades

PN	Item
007021195	SHOCK ABSORBER COUNTACH DOOR SHOCK ABSORBER WITHOUT INTERNAL PARTS YOU MAY ALSO NEED N02214812 X1 HEX.HEAD 007021193 X1 SHOCK ABSOR.FIX.PIN TO DO 007021208 X1 SHOCK ABSORBER SECURPIN A 008580801 X1 O-RING E 8 UNI 7535-75 N01118410 X1 HEX.HEAD CLAMPING NUT WHT002962 X3 WASHER	Current Stock: 7 Our Price: $114.14
007029005	BONNET LIFTER BONNET LIFTER	Current Stock: 4 Our Price: $103.63
007029006	TRUNK LIFTER STRUT TRUNK LIFTER WITH STAB.	Current Stock: 4 Our Price: $80.38
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO	Current Stock: 7 Our Price: $27.66

Drivetrain

PN	Item
004219984	MASTER CLUTCH CYLINDER CLUTCH CYLINDER CONTROL ASSEMBLY	Current Stock: 1 Our Price: $378.11
002109862	CLUTCH PLATE CLUTCH PLATE	Current Stock: 2 Our Price: $1,290.15
002109861	NLA (NO LONGER AVAILABLE) ENGINE FLYWHEEL	Avail to order Our Price: $2,815.50
002109864	THRUST BEARING THRUST BEARING	Avail to order Our Price: $6,806.83
001501188	OIL FILTER - MIURA COUNTACH ESPADA JARAMA OIL FILTER CARTRIDGE	Current Stock: 5 Our Price: $51.86

Fuel-Air

PN	Item
001320172	AIR FILTER - CARBURETED AIR FILTER EARLY COUNTACH, MIURA, JARAMA, ESPADA SEE PN 001320172KN FOR PERFORMANCE FILTER OPTION	Avail to order Our Price: $541.53
002021172	FREQUENCY VALVE FREQUENCY VALVE BOSCH 0280150300 (028 0150 300)	Avail to order Our Price: $940.50
002021173	FUEL DAMPERS FUEL DAMPERS	Avail to order Our Price: $467.72
002021146	COLD START INJECTOR STARTER INJECTOR	Current Stock: 4 Our Price: $378.11
002021170	COUNTACH FUEL DISTRIBUTOR FUEL DISTRIBUTOR 0438100106 (043 8100 106)	Avail to order Our Price: $6,264.87
002021174	COUNTACH INJECTION EFI ECU ECU	Avail to order Our Price: $4,273.56
002021141	COUNTACH EFI FUEL INJECTION PUMP FUEL PUMP	Avail to order Our Price: $799.00
002021147	FUEL INJECTOR FOR COUNTACH FUEL INJECTOR FOR COUNTACH	Current Stock: 11 Our Price: $286.94
002021176	LAMBDA O2 SENSOR LAMBDA SENSOR *MAY NEED TO USE YOUR EXISTING CONNECTOR	Current Stock: 4 Our Price: $778.09
002021142B	FUEL FILTER - COUNTACH - FOR FUEL INJECTED EFI THIS IS THE ORIGINAL AND SAME FUEL FILTER USED ON ALL COUNTACH EFI SYSTEMS. IT HAS A DIFFERENT PART NUMBER, IN ORDER TO QUE THE ORDER FROM ANOTHER VENDOR RATHER THAN THE FACTORY. WE WOULD BE MORE THAN HAPPY TO GET IT FROM ITALY, BUT IT WILL BE THE SAME PUMP AND MUCH MORE EXPENSIVE. AS OF 1-3-2024 DOESN'T SHOW AVAILABILITY	Avail to order Our Price: $30.48
002021173b	FUEL DAMPERS - FOR FUEL INJECTED EFI THIS IS THE ORIGINAL AND SAME FUEL REGULATOR USED ON ALL COUNTACH EFI SYSTEMS. IT HAS A DIFFERENT PART NUMBER, IN ORDER TO QUE THE ORDER FROM ANOTHER VENDOR RATHER THAN THE FACTORY. WE WOULD BE MORE THAN HAPPY TO GET IT FROM ITALY, BUT IT WILL BE THE SAME PUMP AND MUCH MORE EXPENSIVE.	Current Stock: 1 Our Price: $267.03
002021176OE	LAMBDA SENSORS LAMDA SENSORS	Current Stock: 2 Our Price: $99.14
001320172KN	PERFORMANCE FILTER FOR COUNTACH/ESPADA/JARAMA/MIURA HIGH FLOW PERFORMANCE FILTER.	Current Stock: 1 Our Price: $102.16
001501128	OIL FILTER SEAL OIL FILTER SEAL	Current Stock: 3 Our Price: $23.72
980200016	ADDITIVO X CARB.G 001 700 03 ADDITIVO X CARB.G 001 700 03	Current Stock: 1 Our Price: $14.48

Fuses-Bulbs-Relays

PN	Item
006617095	LICENSE PLATE LAMP REPLACEMENT BULB LICENSE PLATE LAMP REPLACEMENT BULB	Current Stock: 42 Our Price: $10.00
006617091	BULB 21W TAIL LIGHT 21W BULB	Current Stock: 4 Our Price: $12.20
006617094	LAMP BA 15S 21W BULB LAMP BA 15S 21W USED IN VARIOUS LAMPS (DEPENDING ON YOUR YEAR AND MODEL)	Current Stock: 76 Our Price: $8.94
N0177522	BULB HEADLIGHT LAMP 12V/3W	Current Stock: 10 Our Price: $2.12
006311155	RELAY RELAY	Avail to order Our Price: $60.68
006311154	RELAY RELAY	Avail to order Our Price: $50.59
006617093	12V 5W BULB 12V 5W BULB	Avail to order Our Price: $18.30
006309758	CYLINDER BULB 6411/12V 10W CYLINDER BULB 6411/12V 10W	Avail to order Our Price: $10.66

Gaskets

PN	Item	Diagram
001526487	NLA (NO LONGER AVAILABLE) ENGINE GASKET KIT SEE PN 001526467 FOR SEALS KIT		Avail to order Our Price: $1,722.46
001526467	NLA (NO LONGER AVAILABLE) GROMMET & OIL SEALS SET		Avail to order Our Price: $142.56

Ignition

PN	Item	Diagram
001610428	DISTRIBUTOR/SPARK PLUG WIRES - DUAL DISTRIBUTOR IGNITION SYSTEM DISTRIBUTOR/SPARK PLUG WIRES		Avail to order Our Price: $1,167.87
001611403	COUNTACH WIRING HARNESS COUNTACH WIRING HARNESS		Avail to order Our Price: $3,100.38

Misc

PN	Item
006111300	LONG WIPER BLADE LONG WIPER BLADE	Avail to order Our Price: $48.90
006128790	WIPER SHORT BLADE 13 INCH WIPER SHORT BLADE (PREVIOUS PN 006111019)	Current Stock: 2 Our Price: $18.14
008200605R	OE SPEC ALTERNATIVE FOR 008200605 M6 NCM 70 URAMA SIMMON NUT	Avail to order Our Price: $1.53
0R0000149	CLEANER FLUID 250ML CLEANER FLUID	Current Stock: 1 Our Price: $82.84
400093050D	CTEK US-CD BATTERY CHARGER INPUT 110-120VAC OUTPUT MAX 4.3A, 12V BACK DRAIN LESS THAN 1.5AM/MONTH	Avail to order Our Price: $417.39

Sensors

PN	Item
002409895	REVERSE SWITCH REVERSE SWITCH NLA FROM FACTORY PLEASR CONTACT US FOR CURRENT PRICE AND AVAILABILITY	Avail to order Our Price: $137.97
002021143	THERMOSTAT SWITCH - EFI COUNTACH ONLY ORIGINAL OEM THERMOSTAT SWITCH - INTERR.TERM.0.280.130.214	Current Stock: 3 Our Price: $940.50
001724565	FAN MOTOR THERMAL CONTACT FAN MOTOR THERMAL CONTACT	Avail to order Our Price: $263.59
006019052	OIL TEMPERATURE GAUGE OIL TEMPERATURE GAUGE	Avail to order Our Price: $583.24
7PP907275F	WHEEL ELECTRONICS WHEEL ELECTRONICS	Avail to order Our Price: $185.62

Tools and Tookits

PN	Item	Diagram
wheeltool	WHEEL INSTALL TOOL SCREWS INTO HUB FOR EASY INSTALLATION.		Current Stock: 92 Our Price: $15.26

Open All

Select Group and TAV

< Previous Next >

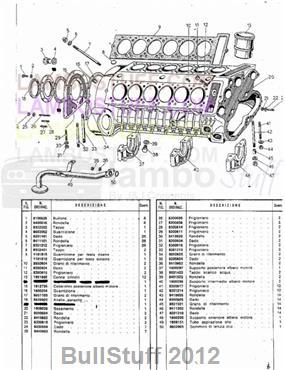

TAV: 9 - Crankcase

1974 - 1978 Lamborghini Countach LP400 USA Crankcase (9)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Countach Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	008100625	SCREW M6X16 UNI 5739/8G/Z	8 req	Avail to order Our Price: $126.16
2	008400616	BONDED SEAL WASHER	8 req	Current Stock: 1 Our Price: $3.17
3	008932202	PLUG 22MB	1 req	Avail to order Our Price: $83.23
4	008602002	RING 21 MM OR	1 req	Current Stock: 8 Our Price: $27.36
5	008201101	NLA (NO LONGER AVAILABLE)	28 req	*See Description
6	008411101	SNAP RING 11.5X21X1.2	28 req	Avail to order Our Price: $8.13
7	008301212	HEAD FASTENING STUD	28 req	Current Stock: 1 Our Price: $12.85
8	008932401	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	2 req	*See Description
9	001101815	CYLINDER HEAD GASKET RIGHT SIDE	1 req	Avail to order Our Price: $503.16
9	001101816	CYLINDER HEAD GASKET	1 req	Avail to order Our Price: $503.16
10	008850804	REFERENCE PIN 8X14 C40	2 req	Avail to order Our Price: $18.54
11	008200804	NUT	2 req	Current Stock: 7 Our Price: $1.30
12	008300815	SPECIAL STUD M8X33	2 req	Avail to order Our Price: $17.57
13	001801880	CYLINDER LINER	12 req	Avail to order Our Price: $1,334.68
15	001812726	This item is no longer available	1 req
16	001800294	CRANKCASE REAR COVERSEAL	1 req	Avail to order Our Price: $24.98
17	008851103	This item is no longer available	2 req
18	001829009	GROMMET	1 req	Current Stock: 2 Our Price: $64.60
20	001808029	MONOBLOCCO	1 req	Avail to order Our Price: $10,744.39
21	N01100637	HEX.NUT	2 req	Current Stock: 18 Our Price: $0.40
22	008410603	WASHER D.6.4 UNI 1751/ZD	2 req	Avail to order Our Price: $0.10
23	WHT003165	TAP END STUD	2 req	Current Stock: 3 Our Price: $1.80
24	N01100637	HEX.NUT	7 req	Current Stock: 18 Our Price: $0.40
25	WHT001197A	WASHER	7 req	Current Stock: 22 Our Price: $0.30
26	008300609	STUD M6X25 UNI 5911 8G/ZD	2 req	Avail to order Our Price: $14.80
27	008300608	NLA (NO LONGER AVAILABLE)	3 req	*See Description
28	008300614	STUD M6X18 UNI 5911 8G/ZD	2 req	Avail to order Our Price: $9.37
29	008300611	STUD 6X30 UNI 5911/8G/Z	2 req	Avail to order Our Price: $7.40
30	WHT001197A	WASHER	2 req	Current Stock: 22 Our Price: $0.30
31	N01100637	HEX.NUT	2 req	Current Stock: 18 Our Price: $0.40
32	008300816	STUD M8X1X65 UNI 5919 10K	2 req	Avail to order Our Price: $16.11
33	008301213	SPECIAL STUD M12X98	2 req	Avail to order Our Price: $62.40
34	WHT003079	REFERENCE PIN 8H7X6.25X10	2 req	Avail to order Our Price: $32.13
35	N01100637	HEX.NUT	2 req	Current Stock: 18 Our Price: $0.40
36	008410603	WASHER D.6.4 UNI 1751/ZD	2 req	Avail to order Our Price: $0.10
37	001800297	This item is no longer available	1 req
38	008931403	BRONZE PLUG	2 req	Avail to order Our Price: $52.72
39	008401502	COPPER WASHER 15X28X2	2 req	Avail to order Our Price: $17.40
40	001800296	This item is no longer available	5 req
41	008300817	STUD M8X1X60 UNI 5919 10K	12 req	Avail to order Our Price: $17.57
42	008301214	SPECIAL STUD M12X94	12 req	Avail to order Our Price: $36.44
43	WHT001514	SPRING WASHER	14 req	Current Stock: 9 Our Price: $26.48
44	008200805	M8X1X8 8G/B NUT	14 req	Avail to order Our Price: $0.20
45	07L301155	BUSH	14 req	Avail to order Our Price: $61.37
46	WHT003055	WASHER 13X24X1.2 DIN137/B C72	14 req	Current Stock: 10 Our Price: $0.70
47	008201210	M12X1.5X12 UNI 5587/8G/Z N	14 req	Avail to order Our Price: $14.80
48	001800295	This item is no longer available	1 req
49	001808151	OIL SUMP SUCTION PIPE	1 req	Avail to order Our Price: $206.32
50	008602901	RING 30 MM OR	1 req	Current Stock: 15 Our Price: $0.70
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
